Feichun MP-GC Mine Power Feeder Cable: Advanced High-Voltage Power Distribution Solution for Extreme Industrial Environments
The Feichun MP-GC Mine Power Feeder Cable is engineered for high-voltage power distribution in harsh industrial environments such as underground mines, boreholes, and critical power infrastructures.
Designed with industry-leading materials and innovative features, this cable offers exceptional durability, safety, and performance for demanding applications.
1.1 Product Designation
| Feature | Details |
|---|---|
| Cable Type | Feichun MP-GC (Uniblend EPR) Mine Power Feeder Cable |
| Voltage Ratings | 5000 Volts (Standard); Optional: 8000V, 15000V, 25000V |
| Temperature Rating | Up to 90°C |
| Conductor Configuration | Three-Conductor Design |
The MP-GC cable is specifically designed to handle high electrical loads while withstanding the extreme environmental and mechanical stresses common in mining and industrial applications.
1.2 Key Technological Innovations
| Innovation | Description |
|---|---|
| Feichun® EPR Insulation | Superior dielectric strength and flexibility |
| Ground-Check Conductor System | Monitors integrity for enhanced safety |
| Stress Management System | Controls and distributes electrical stress to improve lifespan |
| Environment Optimization | Resistant to chemicals, moisture, and extreme temperatures |
These features make the MP-GC Mine Power Feeder Cable a reliable choice for power distribution in challenging industrial environments.
II. Technical Specifications

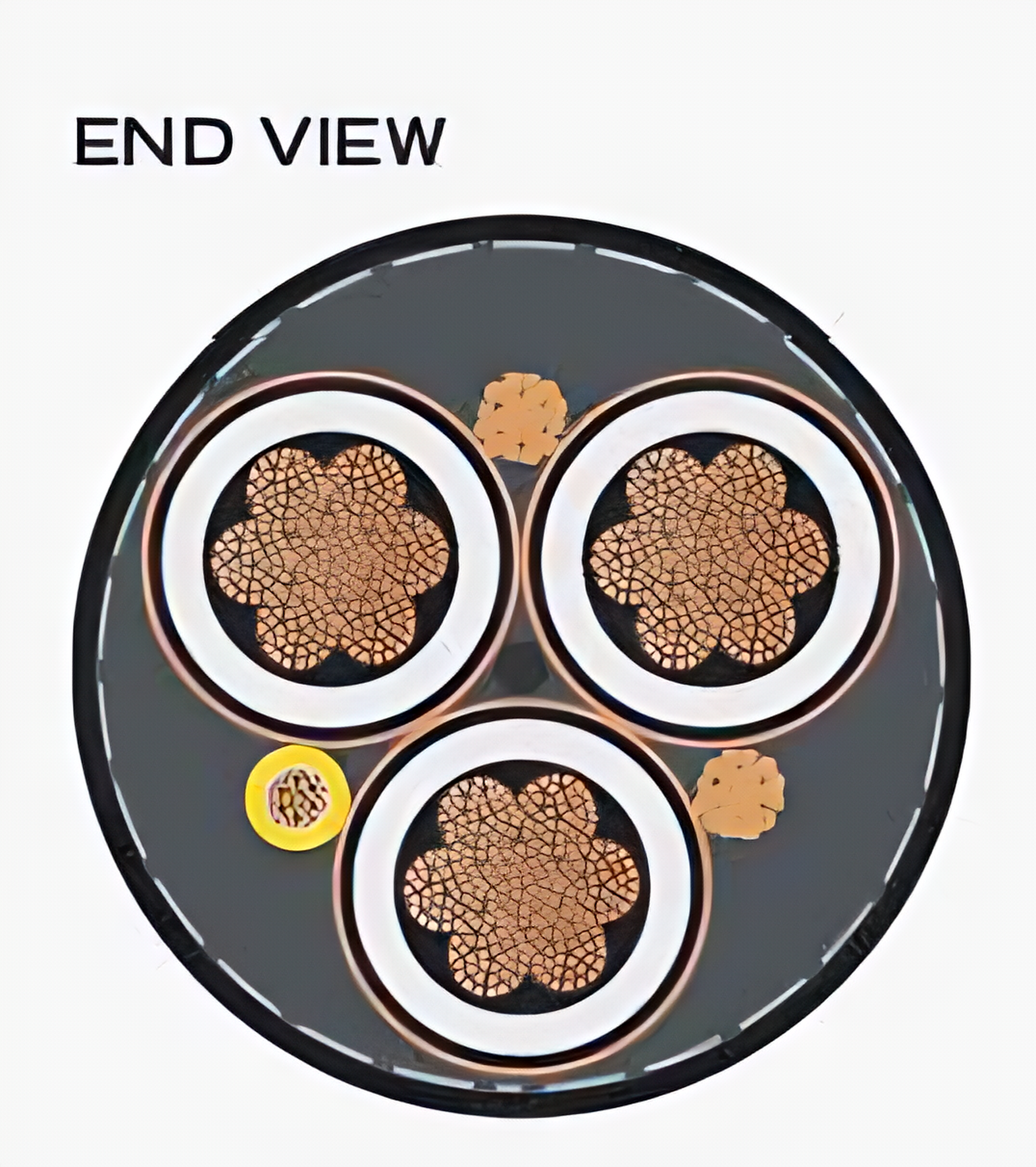

2.1 Conductor Characteristics
| Conductor Type | Details |
|---|---|
| Material | Annealed Bare Copper |
| Size Range | 6 AWG through 500 kcmil |
| Stranding | Compact Class B Strand |
| Electrical Properties | High stability, low dielectric loss |
Ground-Check Conductor:
| Feature | Details |
|---|---|
| Material | Annealed Copper |
| Strand Configuration | Class B Strand |
| Insulation | Yellow Polypropylene for visual contrast and durability |
The high-strand copper conductors and fail-safe ground-check conductor ensure the cable’s suitability for high-performance and safety-critical operations.

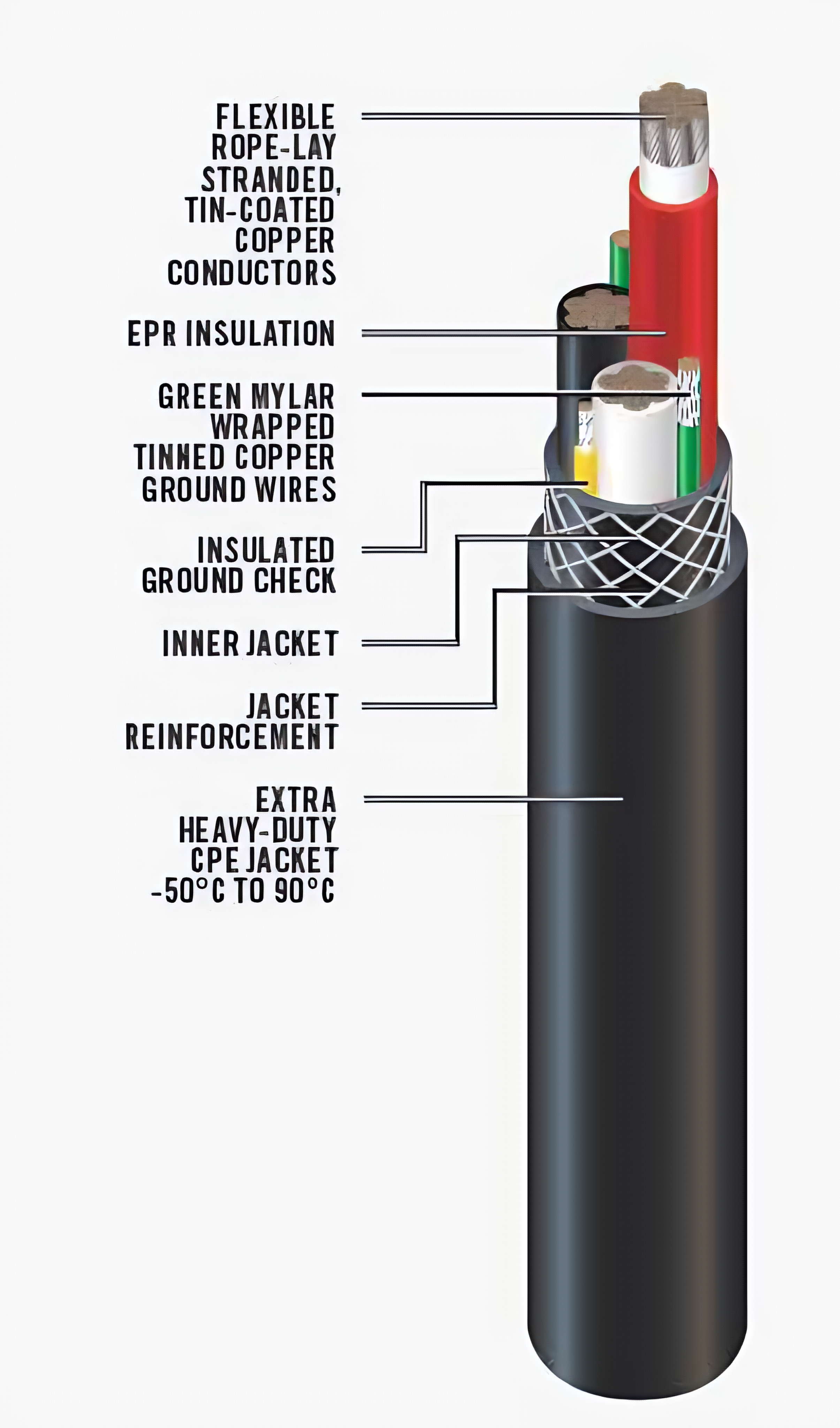

2.2 Insulation System
| Component | Feature |
|---|---|
| Conductor Shield | Thermosetting semi-conducting layer to eliminate unequal electrical stress |
| Insulation Material | Ethylene Propylene Rubber (EPR), color-coded for easy identification |
| Insulation Shield | Copper tape shield with thermosetting semi-conducting layer |
The EPR insulation system ensures superior dielectric strength, flexibility, and resistance to high temperatures, making it ideal for high-voltage applications in tough environments.
2.3 Jacket and External Protection
| Jacket Material | Details |
|---|---|
| Material | Lead-cured Chlorinated Polyethylene (CPE) |
| Resistance Properties | Heat, moisture, oil, chemical, radiation, and flame |
| Mechanical Strength | Tear and puncture resistance, abrasion protection |
The CPE jacket enhances the cable’s lifespan by providing robust protection against mechanical wear, UV radiation, and corrosive substances.
2.4 Mechanical and Environmental Resistance
| Mechanical Property | Performance |
|---|---|
| Abrasion Resistance | High, for frequent handling and rough usage |
| Flame Retardancy | Meets stringent flame tests |
| Temperature Tolerance | Operates efficiently in extreme heat and cold |
The MP-GC cable is specifically designed for the most challenging environments, delivering consistent performance under mechanical stress and exposure to extreme temperatures.
III. Compliance and Certification
| Certification | Details |
|---|---|
| MSHA Approval | Approved for mining safety (P-07-KA110019) |
| ICEA S-75-381 Compliance | Meets portable and feeder cable specifications |
| CAN/CSA C22.2 No. 96.1 | Mine power feeder cable standards |
| Environmental Approval | Pennsylvania Department of Environmental Protection |
These certifications ensure that the Feichun MP-GC Mine Power Feeder Cable complies with global safety and performance standards, making it suitable for use in regulated environments.
IV. Deployment Applications
4.1 Primary Use Environments
| Application | Details |
|---|---|

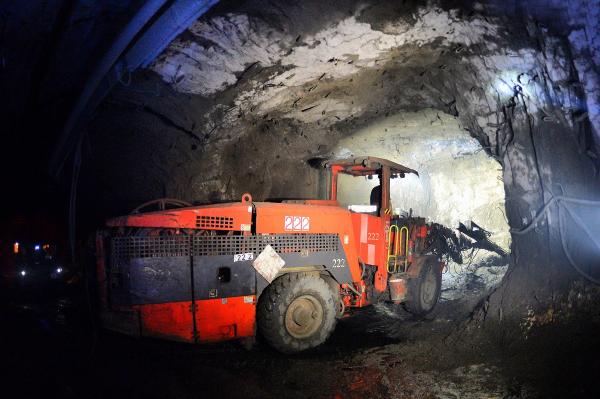

| Underground Mining | Power distribution for mining operations |
| Bore Holes | Reliable performance in vertical installations |
| Direct Burial | Withstands harsh subsurface conditions |
| Aerial Distribution | Durable enough for outdoor overhead power distribution |
4.2 Specialized Deployment Scenarios
| Scenario | Solution Provided |
|---|---|
| Corrosive Environments | Resistant to chemicals, ensuring longevity |
| High Mechanical Stress | Robust construction withstands heavy loads |
| Critical Infrastructure | Maintains consistent performance for essential operations |
The cable is ideal for diverse deployment scenarios, ensuring reliability in extreme and safety-critical environments.
V. Installation and Deployment Guidelines
5.1 Installation Best Practices
| Guideline | Recommendation |
|---|---|
| Cable Routing | Avoid sharp bends; adhere to minimum bend radius |
| Temperature Considerations | Use within specified operating range |
| Inspection | Regularly check for wear and damage |
5.2 Storage and Maintenance
| Aspect | Guideline |
|---|---|
| Packaging | Custom cut lengths on non-returnable reels |
| Storage Temperature | Store in dry, moderate temperature conditions |
| Maintenance Protocol | Conduct periodic visual and electrical integrity inspections |
VI. Technical Support and Advanced Resources
Feichun offers comprehensive support for its MP-GC Mine Power Feeder Cable, including:
- Technical Documentation: Access detailed specifications and compliance guidelines.
- Engineering Support: Get expert advice on installation and optimization.
- Customization Options:
- Colored jackets for quick identification
- Special length configurations
- Voltage rating adaptations
The Feichun MP-GC Mine Power Feeder Cable is a top-tier solution for high-voltage power distribution in harsh environments.
Its robust design, superior materials, and compliance with international standards make it the preferred choice for mining, industrial, and critical infrastructure applications.
Why Choose Feichun MP-GC Cable?
- Durability: Withstands mechanical and environmental stress.
- Safety: Meets the most rigorous safety and flame-resistance standards.
- Performance: Optimized for reliable, high-voltage power delivery in extreme conditions.
Contact Feichun Cable today to explore how the MP-GC Mine Power Feeder Cable can power your industrial operations!
References and Standards:
- ICEA S-75-381 Portable and Feeder Cable Specifications
- MSHA Electrical Safety Guidelines
- CAN/CSA C22.2 No. 96.1 Mine Power Feeder Cable Standard
- IEEE Guide for Cable Installation in Underground Mining Environments.
Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
