Type SHD-GC 3/0 AWG 3C Mining Power Reeling CPE Mine Cable 5kV

The SHD-GC 3/0 AWG 3C Mining Power Reeling CPE Mine Cable in 5kV configuration stands out with its exceptional resilience and specialized design tailored for demanding mining applications, offering distinct advantages over traditional GC cables.

1. **Enhanced Durability:** Unlike standard GC cables, the SHD-GC Mine Cable features a Chlorinated Polyethylene (CPE) jacket with reinforced two-layer construction. This design provides superior resistance to mechanical damage, ensuring prolonged service life even in the harshest mining conditions.

2. **Flexible Shielding:** While both cables offer shielding for safety and uninterrupted power transmission, the SHD-GC Mine Cable utilizes a flexible coated copper/textile braid shield. This design enhances flexibility, making installation and handling easier while maintaining robust protection against external factors.

3. **Advanced Insulation:** The SHD-GC Mine Cable employs Ethylene Propylene Rubber (EPR) insulation, offering enhanced resistance to moisture, oil, chemicals, and abrasion compared to standard GC cables. This advanced insulation ensures reliable performance and minimizes the risk of electrical failures in harsh mining environments.

4. **Specialized Design for Reeling Applications:** Designed specifically for reeling applications in mining operations, this cable is engineered to withstand frequent bending and movement without compromising performance. Its rugged construction and flexible design make it ideal for use in cable reeling systems commonly found in mining equipment.

5. **Compliance with Safety Regulations:** Similar to GC cables, the SHD-GC Mine Cable includes a ground-check conductor for fail-safe monitoring, ensuring compliance with safety regulations and minimizing the risk of electrical hazards in mining environments.

In summary, the SHD-GC 3/0 AWG 3C Mining Power Reeling CPE Mine Cable offers superior durability, flexibility, and performance compared to traditional GC cables, making it the ideal choice for demanding mining applications where reliability and safety are paramount.

**Key Components:**

1. **Conductor Core:** Featuring 6 AWG through 500 kcmil coated annealed copper conductors, bunched wires, and rope-lay-stranded construction per ASTM B172, this cable provides efficient power transmission and flexibility.

2. **Insulation:** Ethylene Propylene Rubber (EPR) insulation offers exceptional protection against heat, moisture, steam, oil, chemicals, and radiation, ensuring reliable operation in challenging mining conditions.

3. **Insulation Shield:** A flexible coated copper/textile braid shield, applied over non-conducting overlapped tape, provides superior protection against external interference, enhancing signal integrity and reliability.

4. **Ground Check Conductor:** Annealed copper, rope-lay-stranded per ASTM B172, insulated with high-strength yellow polypropylene, ensures fail-safe monitoring and enhanced operational safety.

5. **Grounding Conductors:** Coated copper, rope-lay-stranded per ASTM B172, with two conductors in contact with the flexible copper braid shield, provide additional grounding for improved safety.

6. **Jacket:** The reinforced, two-layer, extra-heavy-duty, lead-cured Chlorinated Polyethylene (CPE) jacket offers maximum protection against mechanical damage, including cutting, impact, abrasion, flame, and sunlight exposure, ensuring long-lasting performance.

**Applications:**

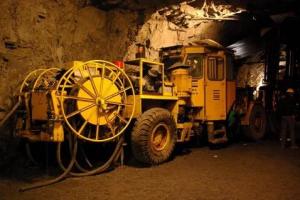

- Trailing cables on AC mining equipment

- Usage with Bretby-type cable handling devices on longwall shearers

- Suitable for low- and medium-voltage AC circuits requiring enhanced shielding

- Ideal for applications where ground-check conductors are necessary for fail-safe monitoring

**Features:**

- Flexible insulation shield provides shock hazard protection

- Excellent resistance to heat, moisture, oil, chemicals, and radiation

- Flexibility for easy handling and installation

- Resilience against cutting, impact, abrasion, flame, and sunlight exposure

- Excellent thermal stability and physical properties over a broad temperature range

- Two-layer jacket reinforced for maximum protection against mechanical damage

**Specifications:**

- Size: 3/0 AWG

- Number of Conductors: 3

- Conductor Strand: 413

- Ground Conductor AWG Size: 2

- Ground Check AWG Size: 8

- Nominal Insulation Thickness: 0.110 inches / 2.8 mm

- Outside Diameter: 2.36 inches / 59.9 mm

- Current AMPS: 279

- Net Weight: 4.475 lbs per ft

The SHD-GC 3/0 AWG 3C Mining Power Reeling CPE Mine Cable 5kV ensures reliable power transmission and safety in mining operations, offering durability and performance in challenging environments.

Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
