**Type SHD-GC 2 AWG 3C Chlorinated Polyethylene Power Cable 5kV**

**Product Description:**

The Type SHD-GC 2 AWG 3C Chlorinated Polyethylene Power Cable 5kV epitomizes resilience and reliability in demanding mining environments.

This robust cable is meticulously engineered to deliver superior power transmission and control capabilities while enduring the rigors of the most challenging conditions.

**Key Components:**

1. **Conductor Core:** Featuring 6 AWG through 500 kcmil coated annealed copper conductors, bunched wires, and rope-lay-stranded construction per ASTM B172, this cable ensures optimal conductivity and flexibility, essential for mining operations.

2. **Insulation Excellence:** Ethylene Propylene Rubber (EPR) insulation provides robust protection against heat, moisture, steam, oil, chemicals, and radiation, ensuring sustained performance even in the harshest conditions.

3. **Innovative Shielding:** The cable is equipped with a flexible coated copper/textile braid shield, reinforced with non-conducting overlapped tape, offering unparalleled protection against external interference and ensuring signal integrity.

4. **Grounding Solutions:** Annealed copper ground check conductor, rope-lay-stranded per ASTM B172, insulated with high-strength yellow polypropylene, along with coated copper grounding conductors, ensures fail-safe monitoring and enhanced operational safety.

5. **Durable Jacket:** The reinforced, two-layer, extra-heavy-duty, lead-cured Chlorinated Polyethylene (CPE) jacket provides maximum protection against mechanical damage, including cutting, impact, abrasion, flame, and sunlight exposure, ensuring prolonged cable life.

**Applications:**

- Trailing cables on AC mining equipment

- Utilization with Bretby-type cable handling devices on longwall shearers

- Low- and medium-voltage AC circuits requiring enhanced shielding for operational safety

**Features:**

- Flexible insulation shield for shock hazard protection

- Superior resistance to heat, moisture, oil, chemicals, and radiation

- Easy handling and installation due to flexibility

- Resilience against cutting, impact, abrasion, flame, and sunlight exposure

- Broad temperature range compatibility and excellent thermal stability

- Reinforced jacket for maximum protection against mechanical damage, prolonging cable life

**Specifications:**

- Size: 2 AWG

- Number of Conductors: 3

- Conductor Strand: 259

- Ground Conductor AWG Size: 6

- Ground Check AWG Size: 8

- Nominal Insulation Thickness: 0.110 inches / 2.8 mm

- Outside Diameter: 1.87 inches / 47.9 mm

- Current AMPS: 159

- Net Weight: 2.445 lbs per ft

In the challenging environment of mining operations, the Type SHD-GC 2 AWG 3C Chlorinated Polyethylene Power Cable 5kV stands as a testament to durability, reliability, and uncompromising performance, ensuring seamless power transmission and control.

Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.

3C Chlorinated Polyethylene Power Cable

5kV Chlorinated Polyethylene Power Cable

2 AWG Chlorinated Polyethylene Power Cable

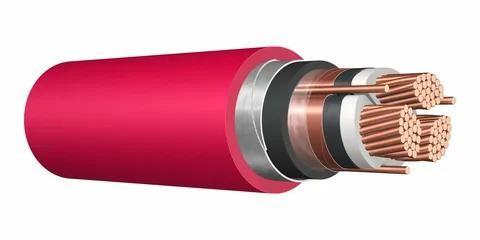

Type SHD-GC 2 AWG 3C Chlorinated Polyethylene Power Cable 5kV Images
