Type SHD-GC 2/0 AWG 3C 5kV Mine Rubber Power Trailing Cable

**Type SHD-GC 2/0 AWG 3C 5kV Mine Rubber Power Trailing Cable**

**Product Description:**

The SHD-GC 2/0 AWG 3C 5kV Mine Rubber Power Trailing Cable is engineered for rugged mining environments, delivering reliable power transmission for heavy-duty equipment. With a voltage rating of 5kV, this cable is suitable for various mining applications, including underground and open-pit operations.

Its construction features Ethylene Propylene Rubber (EPR) insulation, providing excellent protection against harsh conditions. Additionally, the cable is equipped with a flexible coated copper/textile braid shield and a robust two-layer Chlorinated Polyethylene (CPE) jacket, ensuring durability and longevity in demanding environments.

This cable is designed to withstand heat, moisture, oil, chemicals, and abrasion, making it ideal for powering equipment such as drills, loaders, and conveyors.

The SHD-GC 2/0 AWG 3C 5kV Mine Rubber Power Trailing Cable is designed to meet the demanding requirements of mining operations, offering reliable power transmission and safety in challenging environments.

With its robust construction and advanced features, this cable is ideal for use as trailing cables on AC mining equipment, ensuring efficient performance and durability.

**Key Components:**

1. **Conductor Core:** The cable features 6 AWG through 500 kcmil coated annealed copper conductors, bunched wires, and rope-lay-stranded construction per ASTM B172, ensuring efficient power transmission and flexibility.

2. **Insulation:** Ethylene Propylene Rubber (EPR) insulation provides excellent protection against heat, moisture, steam, oil, chemicals, and radiation, ensuring reliable operation in harsh mining conditions.

3. **Insulation Shield:** A flexible coated copper/textile braid shield, applied over non-conducting overlapped tape, offers superior protection against external interference, enhancing signal integrity and reliability.

4. **Ground Check Conductor:** Annealed copper, rope-lay-stranded per ASTM B172, insulated with high-strength yellow polypropylene, ensures fail-safe monitoring and enhanced operational safety.

5. **Grounding Conductors:** Coated copper, rope-lay-stranded per ASTM B172, with two conductors in contact with the flexible copper braid shield, provide additional grounding for enhanced safety.

6. **Jacket:** The reinforced, two-layer, extra-heavy-duty, lead-cured Chlorinated Polyethylene (CPE) jacket provides maximum protection against mechanical damage, including cutting, impact, abrasion, flame, and sunlight exposure, ensuring long-lasting performance.

**Applications:**

- Trailing cables on AC mining equipment

- Usage with Bretby-type cable handling devices on longwall shearers

- Suitable for low- and medium-voltage AC circuits requiring enhanced shielding

- Ideal for applications where ground-check conductors are necessary for fail-safe monitoring

**Features:**

- Flexible insulation shield provides shock hazard protection

- Exceptional resistance to heat, moisture, oil, chemicals, and radiation

- Flexibility for easy handling and installation

- Resilience against cutting, impact, abrasion, flame, and sunlight exposure

- Excellent thermal stability and physical properties across a broad temperature range

- Two-layer jacket reinforced for maximum protection against mechanical damage

**Specifications:**

- Size: 2/0 AWG

- Number of Conductors: 3

- Conductor Strand: 329

- Ground Conductor AWG Size: 3

- Ground Check AWG Size: 8

- Nominal Insulation Thickness: 0.110 inches / 2.8 mm

- Outside Diameter: 2.20 inches / 55.9 mm

- Current AMPS: 243

- Net Weight: 3.800 lbs per ft

The SHD-GC 2/0 AWG 3C 5kV Mine Rubber Power Trailing Cable ensures reliable power transmission and safety in mining operations, offering durability and performance in challenging environments.

Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.

3C Mine Rubber Power Trailing Cable

5kV Mine Rubber Power Trailing Cable

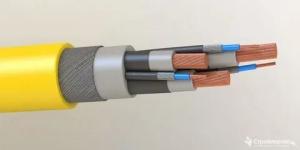

Type SHD-GC 2/0 AWG 3C 5kV Mine Rubber Power Trailing Cable Images
