**Type SHD-GC Mine Trailing 2kV 4 AWG 3C EPR/CPE Mining Cable**

The Type SHD-GC Mine Trailing 2kV 4 AWG 3C EPR/CPE Mining Cable is specifically engineered for heavy-duty mining applications, where reliable power transmission is essential in demanding environments.

**Key Features:**

- **Finely Stranded Tinned Copper Conductors:**

The conductors are finely stranded and tinned, enhancing flexibility, reducing conductor fatigue, and improving overall durability. Tinned conductors also offer superior corrosion resistance and ease of soldering.

- **Ethylene Propylene Rubber (EPR) Insulation:**

The cable is insulated with Ethylene Propylene Rubber (EPR), which provides exceptional dielectric strength and resilience.

This insulation material is resistant to a wide range of substances, including lubricating oils, coolants, cutting oils, acids, and various chemicals. It effectively protects against moisture and heat, ensuring reliable performance in harsh mining conditions.

- **Extra Heavy-Duty Reinforced Jacket:**

The cable is equipped with an extra heavy-duty reinforced jacket, offering outstanding protection against impact, abrasion, and cut-through. This robust jacket ensures long-term durability and reliability, even in the most demanding mining environments.

**Specifications:**

- Size: 4 AWG

- Number of Conductors: 3

- Conductor Strand: 259 strands

- Ground Conductor AWG Size: 8

- Ground Check AWG Size: 10

- Nominal Insulation Thickness: 0.070 inches / 1.8 mm

- Outside Diameter: 1.40 inches / 35.6 mm

- Current Rating: 122 Amps

- Net Weight: 1.46 lbs per foot

The Type SHD-GC Mine Trailing 2kV 4 AWG 3C EPR/CPE Mining Cable is meticulously designed to meet the rigorous demands of mining operations, providing reliable power transmission and ensuring safety and efficiency in challenging mining environments.

Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.

3C SHD-GC Mine Trailing Cable

2kV SHD-GC Mine Trailing Cable

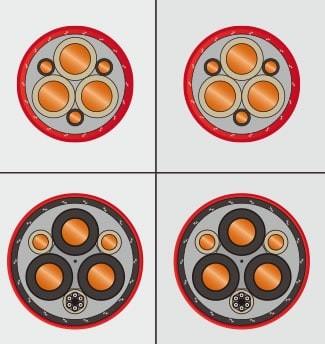

Type SHD-GC Mine Trailing 2kV 4 AWG 3C EPR/CPE Mining Cable Images
