Type MP-GC Mine Power Feeder Cable – XLPE / PVC 90°C MSHA Mining Grade 5000V/15000V ICEA S-75-381 / NEMA WC58
For mining operations, reliable power is essential, especially in demanding environments like underground shafts, tunnels, and rugged terrains. That’s where the Type MP-GC Mine Power Feeder Cable comes in. With its XLPE/PVC insulation rated up to 90°C and a voltage range of 5000V to 15000V, this cable is designed to meet the strict standards for mining applications under ICEA S-75-381 / NEMA WC58.
Whether used as a trailing cable or a heavy-duty power feeder, it meets the highest safety and performance standards to support heavy machinery, mining operations, and other industrial applications.
Key Features of Type MP-GC Mine Power Feeder Cable
| Feature | Specification |
| Cable Type | MP-GC Mine Power Feeder |
| Insulation Materials | XLPE/PVC |
| Temperature Rating | 90°C |
| Voltage Rating | 5000V / 15000V |
| Compliance Standards | ICEA S-75-381, NEMA WC58, MSHA Mining Grade |
| Applications | Shaft, trailing cable, underground mining |
| Additional Qualities | Flexible, heavy-duty, flame, oil, and heat-resistant |
Why Choose the MP-GC Mine Power Feeder Cable?
Mining environments, with their extreme temperatures, constant vibration, and high-wear conditions, require cables that offer both flexibility and durability. The Type MP-GC cable is built with XLPE/PVC insulation to offer unmatched resistance to heat and abrasion, while its 90°C temperature rating ensures it withstands the tough demands of industrial mining environments.
This cable is MSHA Mining Grade certified, assuring reliability and safety in even the harshest settings.
Construction and Design
To offer maximum electrical and mechanical protection, the Type MP-GC Mine Power Feeder Cable is constructed from premium materials, ensuring excellent performance and longevity.
Conductors: Composed of annealed bare copper Class B conductors per ASTM B 8 standards. Copper provides high conductivity, necessary for maintaining consistent voltage even across large distances.
Conductor Shield: The semi-conductive tape and layer over the conductor offer electrical shielding.
Insulation: Made of cross-linked polyethylene (XLPE) or polyvinyl chloride (PVC), this insulation provides excellent thermal and dielectric properties, making it ideal for high-voltage and temperature scenarios.
Insulation Shield: Semi-conducting compound and copper tape provide additional electrical shielding, enhancing safety and stability.
Grounding: Annealed, tin-coated copper grounding conductors per ASTM B 8 ensure safe grounding, which is essential for all mining and industrial applications.
Outer Jacket: The jacket is a heavy-duty CPE thermosetting compound that offers robust protection against abrasion, weather, and chemicals, suitable for underground and exposed applications.
Key Characteristics and Electrical Properties
| Characteristic | Value |
| Max Conductor Operating Temp | 90°C |
| Max Emergency Overload Temp | 130°C |
| Max Short-Circuit Conductor Temp | 250°C |
| Lowest Ambient Temp for Operation | -40°C |
| Lowest Installation Temp | -5°C |
| Min Bending Radius | 12xD (D = Overall Diameter of Cable) |
Applications
The MP-GC Mine Power Feeder Cable can be used in a wide range of settings, including:
Underground Mining: Ideal for shaft applications, providing flexibility and resilience for harsh underground conditions.
Trailing Cable: This cable can be used in mobile equipment and machinery that require trailing cables, offering superior resistance to wear and tear.
Industrial Use: This cable is suitable for any high-demand setting where heavy-duty power cables are required.
Technical Specifications for 5000V and 15000V Ratings
To help you make an informed decision, here are detailed specifications for both the 5000V and 15000V ratings of the MP-GC Cable:
5000V Specifications
| Part Number | Conductor Size | Conductor Strands | Ground Size | Ground Check | Insulation Thickness (inches) | Jacket Thickness (inches) | Outer Diameter (inches) | Cable Weight (lbs/kft) | Ampacity (A) |
| MPGC5KV2/0-3 | 2/0 | 19 | 8 | 8 | 0.090 | 0.110 | 1.81 | 2660 | 243 |
| MPGC5KV4/0-3 | 4/0 | 37 | 1 | 8 | 0.140 | 0.140 | 2.06 | 3760 | 321 |
15000V Specifications
| Part Number | Conductor Size | Conductor Strands | Ground Size | Ground Check | Insulation Thickness (inches) | Jacket Thickness (inches) | Outer Diameter (inches) | Cable Weight (lbs/kft) | Ampacity (A) |
| MPGC15KV2/0-3 | 2/0 | 19 | 3 | 8 | 0.175 | 0.140 | 2.20 | 3190 | 246 |
| MPGC15KV4/0-3 | 4/0 | 37 | 1 | 8 | 0.245 | 0.140 | 2.45 | 4310 | 325 |
Advantages of the Type MP-GC Mine Power Feeder Cable
Enhanced Flexibility:
Suitable for trailing and underground applications, its flexibility allows it to adapt to complex installations and withstand constant movement.
High Heat Resistance:
With a 90°C continuous operating temperature and short-term overload capacity up to 250°C, this cable is ideal for mining environments where temperature control is essential.
MSHA Mining Grade Certification:
Ensures compliance with safety and industry standards, especially critical in mining operations.
Superior Weather and Chemical Resistance:
The CPE outer jacket is resistant to chemicals, moisture, and harsh weather conditions, increasing the lifespan of the cable in outdoor applications.
Customizable:
Options for EPR/CPE insulation are available to suit different environmental conditions, and the cable can be customized for extreme conditions, including high altitudes and varying temperature zones.
Comparison with Other Mining Cables
| Feature | Type MP-GC Mine Power Feeder Cable | SHD-GC Mining Cable | G-GC Power Cable |
| Voltage Range | 5000V / 15000V | 2000V - 5000V | 2000V - 5000V |
| Insulation | XLPE / PVC (90°C) | EPR | PVC or XLPE |
| Outer Jacket | Heavy-duty CPE | Neoprene | Neoprene or PVC |
| Flexibility | High | Moderate | Moderate |
| MSHA Mining Grade | Yes | Yes | No |
| Typical Applications | Underground, shaft, and trailing | Underground mining | General heavy-duty power |
Safety and Environmental Benefits
Mining cables face unique challenges, including the risk of fires, toxic emissions, and environmental degradation. The Type MP-GC cable’s flame, ozone, and oil resistance not only extends cable life but also enhances the safety of workers and the environment.
It’s manufactured to meet strict MSHA Mining Grade standards, which reduces fire hazards in underground and confined environments.
The Type MP-GC Mine Power Feeder Cable is an exceptional choice for mining and heavy-duty industrial applications. Its XLPE/PVC insulation, MSHA certification, and 90°C temperature rating make it highly suitable for rugged environments that demand reliable performance and safety.
Whether used in underground shafts, as a trailing cable, or for other heavy-duty applications, this cable offers outstanding durability, flexibility, and safety.
Investing in a Type MP-GC Mine Power Feeder Cable means investing in a reliable, high-performance power solution tailored to meet the most challenging conditions in mining and industrial sectors.
Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
Product Tags:
|
|

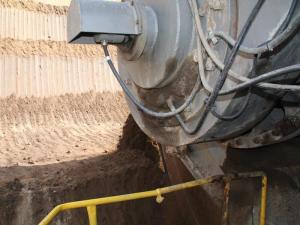

Type MP-GC Mine Power Feeder Cable – XLPE / PVC 90°C MSHA Mining Grade 5000V/15000V ICEA S-75-381 / NEMA WC58 Images
|
