Type 209 1.1 to 11kV Trailing Mining Cable: An Australian Standard for Superior Performance

When it comes to mining operations, having the right cable is essential for ensuring the safety, efficiency, and reliability of your equipment. The Type 209 Trailing Mining Cable is specifically designed to meet the rigorous demands of the mining industry, adhering to Australian standards that guarantee quality and durability.

Available in various voltage levels, including Type 209.1, Type 209.3, Type 209.6, and Type 209.11, this cable is engineered to deliver optimal performance across a wide range of applications.

In this article, we'll delve into the specifics of each type, explore their key features, and highlight the scenarios and machinery where these cables excel.

Understanding the Type 209 Trailing Mining Cable Model

The Type 209 Trailing Mining Cable is a high-performance cable designed to power heavy-duty mining equipment. The model number, Type 209, is recognized under Australian standards as a reliable and robust cable, suitable for the extreme conditions commonly found in mining environments.

Each variation of this cable—Type 209.1, Type 209.3, Type 209.6, and Type 209.11—indicates the cable's voltage rating, which is critical in determining its appropriate use.

Type 209.1: Low Voltage (1.1 kV)

The Type 209.1 Trailing Mining Cable is designed for low-voltage applications, with a voltage rating of 1.1 kV. This cable is ideal for powering equipment that requires a steady, reliable power supply without the need for high voltage. Its low-voltage nature makes it suitable for short-distance power transmission within mining sites, where machinery operates in close proximity to power sources.

Common uses include powering lighting systems, ventilation fans, and smaller auxiliary equipment that are crucial for maintaining safe working conditions underground.

Type 209.3: Medium Voltage (3.3 kV)

Stepping up in voltage, the Type 209.3 version offers a 3.3 kV rating, making it perfect for medium-voltage applications. This cable is particularly useful in scenarios where equipment requires a bit more power but still operates within a controlled range.

The Type 209.3 Trailing Mining Cable is frequently used to power pumps, conveyors, and drills—machinery that demands more energy but needs to maintain a balance between power consumption and operational efficiency. Its medium voltage also allows for greater flexibility in the placement of power sources, extending the reach of equipment without significant power loss.

Type 209.6: High Voltage (6.6 kV)

For more demanding operations, the Type 209.6 Trailing Mining Cable is designed to handle a higher voltage of 6.6 kV. This high-voltage cable is essential for heavy-duty mining equipment that operates over longer distances or requires a significant amount of power.

Examples of such machinery include shovels, draglines, and high-capacity ore crushers. The 6.6 kV rating ensures that even at these higher power demands, the cable delivers consistent, reliable energy with minimal voltage drop. This makes the Type 209.6 cable a key component in large-scale mining projects where robust, long-lasting power is a necessity.

Type 209.11: Extra High Voltage (11 kV)

At the top of the voltage spectrum, the Type 209.11 Trailing Mining Cable is built to handle an impressive 11 kV. This extra high-voltage cable is used in the most power-intensive scenarios, often required for large-scale mining operations and centralized power distribution systems.

The Type 209.11 is capable of transmitting power over vast distances without significant energy loss, making it ideal for remote mining locations where equipment is spread out across a large area. This cable is also crucial for heavy-duty mobile equipment that needs a stable, high-voltage power source to operate effectively in tough mining environments.

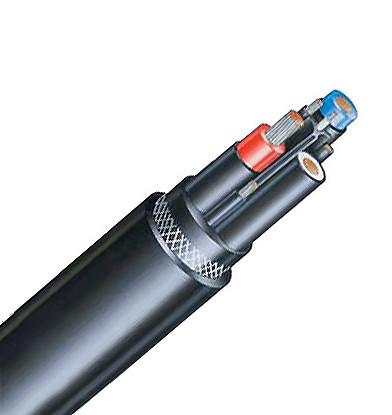

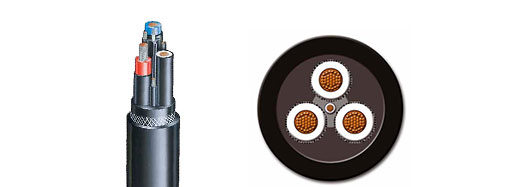

Type-209.1-3C25-SQMM-Mining-Cable-Australia-Standa...

Key Features and Specifications

1. High Durability and Flexibility

One of the standout features of the Type 209 Trailing Mining Cable series is its exceptional durability. Designed to withstand the harsh conditions of mining environments, these cables are constructed with tough outer sheaths that resist abrasion, moisture, and chemical exposure.

Additionally, the cables are highly flexible, making them easy to install and maneuver around equipment, even in confined spaces. This flexibility is particularly important in mining operations, where cables are constantly moved, bent, and dragged across rough surfaces.

2. Superior Electrical Performance

Each version of the Type 209 cable is engineered to provide superior electrical performance. Whether it's the 1.1 kV Type 209.1 or the 11 kV Type 209.11, these cables are designed to deliver consistent, reliable power with minimal energy loss.

The use of high-quality conductors ensures excellent conductivity, while the insulation materials are chosen for their ability to withstand high temperatures and prevent electrical faults. This makes the Type 209 series a safe and efficient choice for powering all types of mining equipment.

3. Compliance with Australian Standards

As an Australian standard cable, the Type 209 Trailing Mining Cable series meets all necessary safety and quality requirements. This compliance guarantees that the cables are built to last and perform reliably in the challenging conditions typical of Australian mining operations.

It also means that the Type 209 cables are compatible with a wide range of equipment used in the mining industry, providing versatility and peace of mind to operators.

Application Scenarios: Where the Type 209 Cables Shine

1. Underground Mining

Underground mining operations benefit greatly from the Type 209 Trailing Mining Cable series. The Type 209.1 and Type 209.3 cables, with their lower voltage ratings, are ideal for powering equipment in tight spaces and over shorter distances.

Their durability and flexibility make them easy to install and maintain in underground environments, where conditions can be particularly harsh.

2. Open-Pit Mining

For open-pit mining operations, where equipment often needs to cover large areas, the Type 209.6 and Type 209.11 cables are the preferred choice. Their higher voltage ratings allow them to transmit power over greater distances, ensuring that even remote equipment receives the energy it needs to operate efficiently.

The rugged construction of these cables also ensures that they can withstand the tough conditions of open-pit mining, including exposure to the elements and heavy wear and tear.

3. Heavy-Duty Industrial Use

Beyond mining, the Type 209 Trailing Mining Cable series is also well-suited for other heavy-duty industrial applications. In industries such as construction, oil and gas, and manufacturing, these cables provide reliable power to equipment that operates in demanding conditions.

The versatility of the Type 209 series means that it can be used in a variety of settings, making it a valuable asset for any operation that requires robust, high-performance power cables.

Why Choose Type 209 Trailing Mining Cables?

1. Proven Reliability

The Type 209 Trailing Mining Cable series has a proven track record of reliability in some of the most demanding mining environments.

Operators trust these cables to deliver consistent power day in and day out, ensuring that equipment runs smoothly and efficiently. This reliability translates into fewer disruptions, less downtime, and ultimately, greater productivity.

2. Tailored to Australian Conditions

Designed to meet Australian standards, the Type 209 series is tailored to the specific needs of the Australian mining industry. This means that the cables are built to handle the unique challenges of mining in Australia, from extreme temperatures to rugged terrain.

By choosing a cable that is specifically designed for your environment, you can be confident that it will perform as expected and provide long-term value.

3. Cost-Effective Solution

While the Type 209 Trailing Mining Cable series is a premium product, it offers a cost-effective solution in the long run. The cables' durability and reliability reduce the need for frequent replacements and repairs, saving operators time and money.

Additionally, the high-quality materials and construction mean that these cables have a longer lifespan, providing better value over time.

Powering the Future of Mining

In the competitive world of mining, having the right equipment can make all the difference. The Type 209 1.1 to 11kV Trailing Mining Cable series offers a comprehensive solution for powering mining operations of all sizes.

With its range of voltage options, robust construction, and compliance with Australian standards, this cable is designed to meet the needs of even the most demanding environments.

Whether you're operating in underground mines, open-pit sites, or heavy-duty industrial settings, the Type 209 series provides the reliability and performance you need to keep your operations running smoothly. Invest in the Type 209 Trailing Mining Cable today, and experience the benefits of a cable that is built to last and perform at the highest level.

Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
